UART I/O Control Functions
[USART Devices]

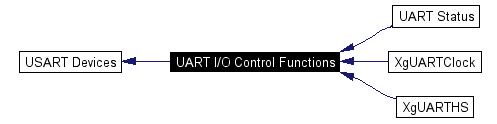

Collaboration diagram for UART I/O Control Functions:

Detailed Description

UART _ioctl() commands.

These commands are used to control and retrieve hardware specific configurations. The definitions are kept independent from the underlying hardware, but not all commands may be fully implemented in each UART driver.

The _ioctl() function expects three parameters:


Modules

 UART Status
 UART device status flags,.
 XgUARTHS
 UART handshake modes.
 XgUARTClock
 UART device clock modes.

Defines

#define UART_SETSPEED   0x0101
 UART _ioctl() command code to set the line speed.
#define UART_GETSPEED   0x0102
 UART _ioctl() command code to query the line speed.
#define UART_SETDATABITS   0x0103
 UART _ioctl() command code to set the number of data bits.
#define UART_GETDATABITS   0x0104
 UART _ioctl() command code to query the number of data bits.
#define UART_SETPARITY   0x0105
 UART _ioctl() command code to set the parity mode.
#define UART_GETPARITY   0x0106
 UART _ioctl() command code to query the parity mode.
#define UART_SETSTOPBITS   0x0107
 UART _ioctl() command code to set the number of stop bits.
#define UART_GETSTOPBITS   0x0108
 UART _ioctl() command code to query the number of stop bits.
#define UART_SETSTATUS   0x0109
 UART _ioctl() command code to set the status.
#define UART_GETSTATUS   0x010a
 UART _ioctl() command code to query the status.
#define UART_SETREADTIMEOUT   0x010b
 UART _ioctl() command code to set the read timeout.
#define UART_GETREADTIMEOUT   0x010c
 UART _ioctl() command code to query the read timeout.
#define UART_SETWRITETIMEOUT   0x010d
 UART _ioctl() command code to set the write timeout.
#define UART_GETWRITETIMEOUT   0x010e
 UART _ioctl() command code to query the write timeout.
#define UART_SETLOCALECHO   0x010f
 UART _ioctl() command code to set the local echo mode.
#define UART_GETLOCALECHO   0x0110
 UART _ioctl() command code to query the local echo mode.
#define UART_SETFLOWCONTROL   0x0111
 UART _ioctl() command code to set the flow control mode.
#define UART_GETFLOWCONTROL   0x0112
 UART _ioctl() command code to query the flow control mode.
#define UART_SETCOOKEDMODE   0x0113
 UART _ioctl() command code to set the cooking mode.
#define UART_GETCOOKEDMODE   0x0114
 UART _ioctl() command code to query the cooking mode.
#define UART_SETBUFFERMODE   0x0115
 UART _ioctl() command code to set the buffering mode.
#define UART_GETBUFFERMODE   0x0116
 UART _ioctl() command code to query the buffering mode.
#define HDLC_SETIFNET   0x0117
 UART _ioctl() command code to set the network interface mode.
#define HDLC_GETIFNET   0x0118
 UART _ioctl() command code to query the network interface mode.
#define UART_SETCLOCKMODE   0x0119
 UART _ioctl() command code to set the clock mode.
#define UART_GETCLOCKMODE   0x011a
 UART _ioctl() command code to query the clock mode.
#define UART_SETTXBUFSIZ   0x011b
 UART _ioctl() command code to set the transmit buffer size.
#define UART_GETTXBUFSIZ   0x011c
 UART _ioctl() command code to query the transmit buffer size.
#define UART_SETRXBUFSIZ   0x011d
 UART _ioctl() command code to set the receive buffer size.
#define UART_GETRXBUFSIZ   0x011e
 UART _ioctl() command code to query the receive buffer size.
#define UART_SETTXBUFLWMARK   0x0120
 UART _ioctl() command code to set the transmit buffer low watermark.
#define UART_GETTXBUFLWMARK   0x0121
 UART _ioctl() command code to query the transmit buffer low watermark.
#define UART_SETTXBUFHWMARK   0x0122
 UART _ioctl() command code to set the transmit buffer high watermark.
#define UART_GETTXBUFHWMARK   0x0123
 UART _ioctl() command code to query the transmit buffer high watermark.
#define UART_SETRXBUFLWMARK   0x0124
 UART _ioctl() command code to set the receive buffer low watermark.
#define UART_GETRXBUFLWMARK   0x0125
 UART _ioctl() command code to query the receive buffer low watermark.
#define UART_SETRXBUFHWMARK   0x0126
 UART _ioctl() command code to set the receive buffer high watermark.
#define UART_GETRXBUFHWMARK   0x0127
 UART _ioctl() command code to query the receive buffer high watermark.
#define UART_SETBLOCKREAD   0x0128
 UART _ioctl() command code to set the block read mode.
#define UART_GETBLOCKREAD   0x0129
 UART _ioctl() command code to query the receive buffer high watermark.
#define UART_SETRAWMODE   0x012a
 UART _ioctl() command code to set physical device to the raw mode.
#define UART_GETRAWMODE   0x012b
 UART _ioctl() command code to query the raw mode.

Define Documentation

#define UART_SETSPEED   0x0101


UART _ioctl() command code to set the line speed.

The configuration parameter specifies the input and output bit rate per second.

#define UART_GETSPEED   0x0102


UART _ioctl() command code to query the line speed.

The configuration parameter is set to the input and output bit rate per second.

#define UART_SETDATABITS   0x0103


UART _ioctl() command code to set the number of data bits.

The configuration parameter specifies the number of data bits, 5, 6, 7, 8 or 9.

#define UART_GETDATABITS   0x0104


UART _ioctl() command code to query the number of data bits.

The configuration parameter is set to the number of data bits, 5, 6, 7, 8 or 9.

#define UART_SETPARITY   0x0105


UART _ioctl() command code to set the parity mode.

The configuration parameter specifies the type of the parity bit, 0 (none), 1 (odd) or 2 (even).

#define UART_GETPARITY   0x0106


UART _ioctl() command code to query the parity mode.

The configuration parameter is set to the type of the parity bit, 0 (none), 1 (odd) or 2 (even).

#define UART_SETSTOPBITS   0x0107


UART _ioctl() command code to set the number of stop bits.

The configuration parameter specifies the number of stop bits, 1 or 2.

#define UART_GETSTOPBITS   0x0108


UART _ioctl() command code to query the number of stop bits.

The configuration parameter is set to the number of stop bits, 1 or 2.

#define UART_SETSTATUS   0x0109


UART _ioctl() command code to set the status.

The configuration parameter specifies the status to set.

#define UART_GETSTATUS   0x010a


UART _ioctl() command code to query the status.

The configuration parameter is set to the current status.

#define UART_SETREADTIMEOUT   0x010b


UART _ioctl() command code to set the read timeout.

The configuration parameter specifies the read timeout in milliseconds.

#define UART_GETREADTIMEOUT   0x010c


UART _ioctl() command code to query the read timeout.

The configuration parameter is set to the read timeout in milliseconds.

#define UART_SETWRITETIMEOUT   0x010d


UART _ioctl() command code to set the write timeout.

The configuration parameter specifies the write timeout in milliseconds.

#define UART_GETWRITETIMEOUT   0x010e


UART _ioctl() command code to query the write timeout.

The configuration parameter is set to the write timeout in milliseconds.

#define UART_SETLOCALECHO   0x010f


UART _ioctl() command code to set the local echo mode.

The configuration parameter specifies the local echo mode, 0 (off) or 1 (on).

#define UART_GETLOCALECHO   0x0110


UART _ioctl() command code to query the local echo mode.

The configuration parameter is set to the local echo mode, 0 (off) or 1 (on).

#define UART_SETFLOWCONTROL   0x0111


UART _ioctl() command code to set the flow control mode.

The configuration parameter specifies the flow control mode.

#define UART_GETFLOWCONTROL   0x0112


UART _ioctl() command code to query the flow control mode.

The configuration parameter is set to the flow control mode.

#define UART_SETCOOKEDMODE   0x0113


UART _ioctl() command code to set the cooking mode.

The configuration parameter specifies the character cooking mode, 0 (raw) or 1 (EOL translation).

#define UART_GETCOOKEDMODE   0x0114


UART _ioctl() command code to query the cooking mode.

The configuration parameter is set to the character cooking mode, 0 (raw) or 1 (EOL translation).

#define UART_SETBUFFERMODE   0x0115


UART _ioctl() command code to set the buffering mode.

The configuration parameter specifies the buffering mode.

#define UART_GETBUFFERMODE   0x0116


UART _ioctl() command code to query the buffering mode.

The configuration parameter is set to the buffering mode.

#define HDLC_SETIFNET   0x0117


UART _ioctl() command code to set the network interface mode.

The configuration parameter specifies the network interface mode.

#define HDLC_GETIFNET   0x0118


UART _ioctl() command code to query the network interface mode.

The configuration parameter is set to the network interface mode.

#define UART_SETCLOCKMODE   0x0119


UART _ioctl() command code to set the clock mode.

The configuration parameter specifies the clock mode.

#define UART_GETCLOCKMODE   0x011a


UART _ioctl() command code to query the clock mode.

The configuration parameter is set to the clock mode.

#define UART_SETTXBUFSIZ   0x011b


UART _ioctl() command code to set the transmit buffer size.

The configuration parameter specifies the number of bytes.

#define UART_GETTXBUFSIZ   0x011c


UART _ioctl() command code to query the transmit buffer size.

The configuration parameter specifies the number of bytes.

#define UART_SETRXBUFSIZ   0x011d


UART _ioctl() command code to set the receive buffer size.

The configuration parameter specifies the number of bytes.

#define UART_GETRXBUFSIZ   0x011e


UART _ioctl() command code to query the receive buffer size.

The configuration parameter specifies the number of bytes.

#define UART_SETTXBUFLWMARK   0x0120


UART _ioctl() command code to set the transmit buffer low watermark.

The configuration parameter specifies the number of bytes.

#define UART_GETTXBUFLWMARK   0x0121


UART _ioctl() command code to query the transmit buffer low watermark.

The configuration parameter specifies the number of bytes.

#define UART_SETTXBUFHWMARK   0x0122


UART _ioctl() command code to set the transmit buffer high watermark.

The configuration parameter specifies the number of bytes.

#define UART_GETTXBUFHWMARK   0x0123


UART _ioctl() command code to query the transmit buffer high watermark.

The configuration parameter specifies the number of bytes.

#define UART_SETRXBUFLWMARK   0x0124


UART _ioctl() command code to set the receive buffer low watermark.

The configuration parameter specifies the number of bytes.

#define UART_GETRXBUFLWMARK   0x0125


UART _ioctl() command code to query the receive buffer low watermark.

The configuration parameter specifies the number of bytes.

#define UART_SETRXBUFHWMARK   0x0126


UART _ioctl() command code to set the receive buffer high watermark.

The configuration parameter specifies the number of bytes.

#define UART_GETRXBUFHWMARK   0x0127


UART _ioctl() command code to query the receive buffer high watermark.

The configuration parameter specifies the number of bytes.

#define UART_SETBLOCKREAD   0x0128


UART _ioctl() command code to set the block read mode.

The configuration parameter specifies the block read mode.

#define UART_GETBLOCKREAD   0x0129


UART _ioctl() command code to query the receive buffer high watermark.

The configuration parameter specifies the block read mode.

#define UART_SETRAWMODE   0x012a


UART _ioctl() command code to set physical device to the raw mode.

The configuration parameter specifies the raw mode for device. In raw mode data encapsulation is not allowed to be done. This allows other processing to be done on physical device.

#define UART_GETRAWMODE   0x012b


UART _ioctl() command code to query the raw mode.

The configuration parameter specified the raw mode.
